Project Salty

RonD2 · Post by **RonD2** » Wed Oct 19, 2022 7:00 pm

Wow, that's crazy.
Afraid to ask what the shipping cost was.
Who did that?

CoastieReid · Post by **CoastieReid** » Thu Oct 20, 2022 3:52 am

A company called Pitstop. 13.00 for two studs, 15 for shipping. And that was the minimum.

CoastieReid · Post by **CoastieReid** » Thu Oct 20, 2022 5:44 pm

I had the special washers I'm my hand the other day and set them on the head to take the manifold off. 1 disappeared. I looked everywhere, with a magnet, on my knees under the jeep trying to find it. Gave up, and today I spotted it.

I put drive shafts in, and finalized the parking brake.

RonD2 · Post by **RonD2** » Thu Oct 20, 2022 7:32 pm

"Gave up, and today I spotted it."
Who said you need glasses?

The Acorn Artillery Protective Helmet bit is hilarious!
Dang squirrels.

Wondering about your parking brake cable being too long?
If it's the correct length M38 cable I wonder if you routed and clamped it in the right spots?
If I recall, it takes 3 clamps, one under the dash on the cane bracket, one on the driver fender, and another on the cross-member.
The one under the dash and on the cross-member are a special mated pair that have tabs to hold and lock down each end of the outer jacket in the right place for length.
And there's also a funny looking twisted bracket holding the jacket on one of the bottom bell-housing bolts.

Here's what the special clamps look like:
https://shop.midwestmilitary.com/produc ... amp-lower/
https://shop.midwestmilitary.com/produc ... amp-upper/

Maybe they're in your leftover nuts and bolts jar?

I think the cable could easily appear to be too long if not routed and clamped in the right spots. Or maybe it's not a stock M38 cable.

If you have a copy, page 112 of the M38 Reference Guide gives the cable length as 61-1/2 inches and good photos of the clamps and bracket.

Post by **wesk** » Thu Oct 20, 2022 11:12 pm

If you have a copy, page 112 of the M38 Reference Guide gives the cable length as 61-1/2 inches

61 1/2" from ball to end of thread stud.

Also note Ryan posted the housing at 50" and added a note below that says:
"(4) no 7 p290 1.5" added Nov 51" Not sure if he means to the housing or the cable.

From TM 9-804

Although not obvious in this illustration the cable passes above and very close to the steering box. Fig 12 & 56 in TM 9-804 is very clear on this.

CoastieReid · Post by **CoastieReid** » Fri Oct 21, 2022 7:00 am

I made a "short" about the acorns coming down on me.. I'll link it at the end.

I was sent a wrong cable originally - this is one you see in video. The thread section is like 2 inches longer than the cable I just bought from Midwest military. (Which came in yesterday afternoon)

I do have those special clips installed and I added a keeper to the fender. I don't have a twisted hook that I've seen in other posts.

I also had to trim the hook and bend a new loop in it about 2 inches shorter. Otherwise even with the correct cable, it wouldn't fit.
The replacement cable has a different jacket- spiral wound wire around that sheeth.

Until I'd get my exhaust/intake manifold back, I'm sort of at a standstill. I hope to get it back today. I go back to work on Monday.

The youtube short. https://youtu.be/HVe6WQ3VwVM

RICKG · Post by **RICKG** » Fri Oct 21, 2022 7:36 am

[quote="RonD2
The Acorn Artillery Protective Helmet bit is hilarious!
Dang squirrels.

[/quote]

RonD2 · Post by **RonD2** » Fri Oct 21, 2022 7:57 am

CoastieReid wrote:I don't have a twisted hook that I've seen in other posts.

Hi April,
George at Army Jeep Parts (AJP) has the twisted hook bracket for the bell housing.
No photo, but the part number and description are correct: https://www.armyjeepparts.com/p-1404-cl ... 42724.aspx
I bought mine from him. I think it's NOS. It's good to go.

Disappointed to hear that your new cable from MWM doesn't fit.
Can you show us a tight photo of where you have the end of the jacket clamped to the cross-member?

The tune you have playing with the short video is great!

Where do you dig this stuff up?

CoastieReid · Post by **CoastieReid** » Fri Oct 21, 2022 8:26 am

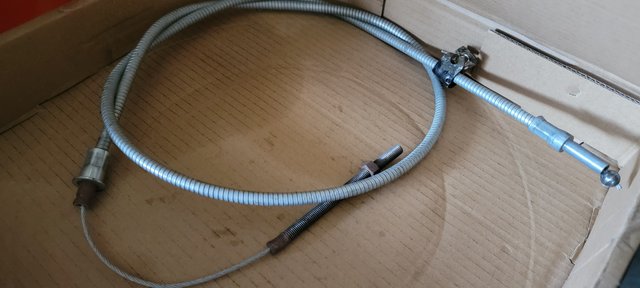

I mistyped. The one I had was wrong -picture in box

The Midwest military one had right length but I still had to clip the hook to make this all work.

I'll climb back under and get better photo. I just didn't want to kneel down in the mud when I had to go drop my 15yo dog off at the vet this morning.

RonD2 · Post by **RonD2** » Fri Oct 21, 2022 8:39 am

CoastieReid wrote:......when I had to go drop my 15yo dog off at the vet this morning.

Not a one-way trip I hope.

I'll have to go look at my hook (manual calls it a "link").
If I recall I also had to shorten it a couple three inches.
I also formed one end of it into a loop to make it captive.
I read posts where they're known to mysteriously disappear.

CoastieReid · Post by **CoastieReid** » Fri Oct 21, 2022 9:07 am

Diesel is getting a Cushings Disease test. Definitely not one way trip. He's got a lot of youth in him still. He has a liver issue we give meds for, but he started showing signs of Cushing, so we are checking. I should go pick him up in a few hours. He was so upset he wasn't allowed to eat this morning.

RonD2 · Post by **RonD2** » Fri Oct 21, 2022 9:15 am

Glad to hear that he'll be home soon!
Next to love, chow is also a big deal.

And here's an old post about the link: http://willysmjeeps.com/v2/modules.php? ... nk&start=0

CoastieReid · Post by **CoastieReid** » Fri Oct 21, 2022 4:14 pm

RonD2 · Post by **RonD2** » Fri Oct 21, 2022 4:35 pm

Hi April,
Is that the correct clamp? It looks rubber coated and wider than I'd expect.
Maybe it's just fresh paint or the photo.

It looks like you have the clamp in the right hole on the cross-member (bracket).
There's 2 holes close together, one hole for the bolt and the other for the tab on the clamp that keeps it oriented correctly.

The narrowest barrel on the end fitting on the jacket, on the very end, is what fits into the clamp.
The bolt passes through the narrow middle slot.

You might have to spread it slightly to get it to fit before bolting it in. I can't locate a good photo, and mine isn't mounted that far at the moment so I can't take one.

The similar clamp on the other end of the jacket fits much the same way.

How's Diesel?
