Points and Condenser mounting

cabinfever · Post by **cabinfever** » Wed Jun 07, 2017 11:14 am

The points and condenser are attached to the breaker plate in the distributor. Can I remove this plate, with the points and condenser still attached as a unit? I would prefer to swap out the parts on my benchtop. Or, do I have to keep my old back hunched over the fender and use magnifying spectacles to the job in place?

Also, what is especially hard to get at it that terminal screw. I cannot use a screw driver to remove the screw because the screw head is below the edge of the distributor. I can remove the screw with a small ignition wrench, but cannot replace the screw with it.

Post by **wesk** » Wed Jun 07, 2017 11:30 am

Steve, When distributor access is limited I just pull the distributor. They don't get removed and inspected enough as they should now. If you replace the points you will be re-adjusting the timing anyway. If you do piddle with it the way you are wanting too remember that cam assembly fits more than one way. Use the TM 9-1825B 1952 edition and if you don't have it handy download the appropriate distributor pages from our downloads page.

cabinfever · Post by **cabinfever** » Wed Jun 07, 2017 11:48 am

Thanks, Wes. I was mainly checking for future reference. However, on Friday I will be replacing the coil which requires the removal of the terminal screw. That screw is a pain in the keister to get back in (I found that out a couple years ago when replacing the condenser. It took me hours to replace the terminal screw.)

Post by **wesk** » Wed Jun 07, 2017 9:15 pm

Invest in those mini gripping screw drivers.

For slotted screws
https://www.amazon.com/dp/B008C0ESJ4?psc=1

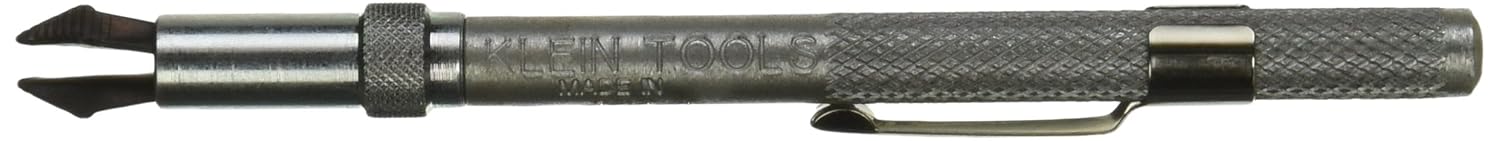

for phillips screws
https://www.amazon.com/Klein-Tools-K14- ... 1RPYDEQWTV

Slotted or phillips spring blade grippers

This one is my favorite for slotted screws:

Center, internal blade is spring loaded and controlled by the little twist knob at the top end of the driver.
http://www.tools-plus.com/ullman-d2.html

cabinfever · Post by **cabinfever** » Thu Jun 08, 2017 8:36 am

Screw drivers won't work on my terminal screw. The majority of the screw head is below the edge of the distributor.

Post by **wesk** » Thu Jun 08, 2017 9:18 am

It works on mine. there's enough sticking above the ledge to get her started with my short (4") slotted screw starter. I've done it with a small magnet as well. Also when changing points in the distributor on the jeep just loosen the terminal screw enough to slip the points up. When I need to disconnect the wire to the coil from the points for troubleshooting I will disconnect the end on the coil.
