Clutch and brake pedal assembly to frame

Post by **Ryan_Miller** » Thu Sep 21, 2006 7:07 pm

Guys,

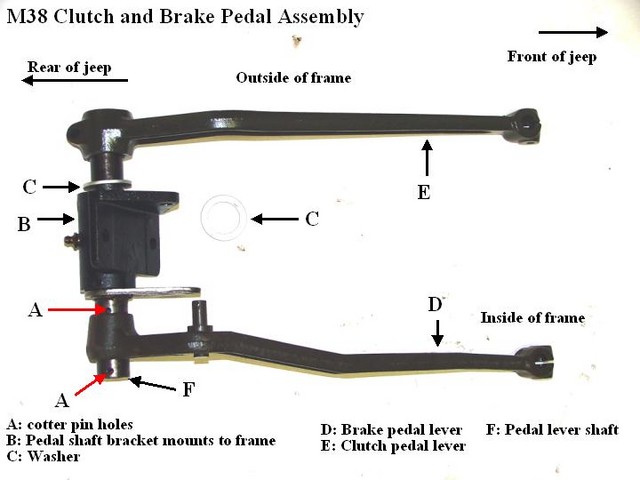

I am trying to figure out the assembly of the brake and clutch bracket and pedal levers.

Is there only one large washer and do I have it in the right place?

On the brake lever, do the two cotter pins hold it in place as the brake pedal rotates on the shaft?

I have been looking up photos in the manuals.

I am confused!

Post by **wesk** » Fri Sep 22, 2006 12:43 am

The parts book should have shown 2 or 3 washers. In a way it does show two washers 1 1/32" ID x 1/8" thick. One in section 0202 for the (clutch) pedal shaft and one in 1206 for the Barke pedal shaft. The drawings and my photo make it look like 3 are needed but the master cylinder side plate could easily perform the same duty as the washer on that end.

Post by **Ryan_Miller** » Fri Sep 22, 2006 10:20 am

Thanks Wes,

That is what I was thinking, 3 washers.

I have two washers and must have lost one somewhere.
