ENGINE PLATE- COPPER WASHER

CoastieReid · Post by **CoastieReid** » Thu May 12, 2022 11:35 am

Request to know- what is the purpose of the copper washer on the Engine Plate in combination of the 5/16'' bolts (6)

Regular washer or do I need to go look for copper?

I did a search on here- spent a while looking and came up empty.

comes up with a new NIIN- 5330-00-695-7243

RonD2 · Post by **RonD2** » Thu May 12, 2022 12:27 pm

Hi April,
Take a look at this old post: http://willysmjeeps.com/v2/modules.php? ... te+support

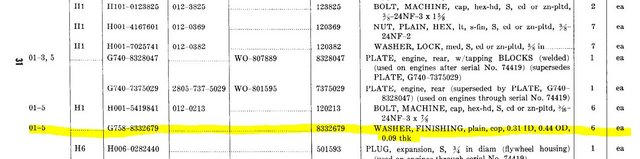

I believe those 6 copper washers are used on the support ("L") bracket to the engine and rear engine plate to ensure a waterproofing seal on the late type bell housing and rear engine plate.
The 6 bolts holding that bracket --- four go into the engine plate tapping blocks and two go into the underside of the block.

There's some debate on whether those bolts are regular hex-head cap screws or maybe indented hex ("Allen") screws. The ORD9 seems to indicate the former not the latter. I believe the length is a critical dimension. Also some indication that all should get some thread sealant.

Hope this helps.

RonD2 · Post by **RonD2** » Thu May 12, 2022 1:21 pm

If helpful, I wanted to add that:
I bought the long (horizontal) support bracket NOS from MWM along with the two take-off shorter L-support brackets.
Those 2 short brackets are a matched set "left" and "right" (they aren't identical).

I found the copper washers in the Hillman bins at my local Ace Hardware.
I suppose if you aren't submerging the truck you could use regular steel washers.

CoastieReid · Post by **CoastieReid** » Thu May 12, 2022 5:45 pm

So i had the bracket already on the backing plate (if you saw the YT video youd see it)

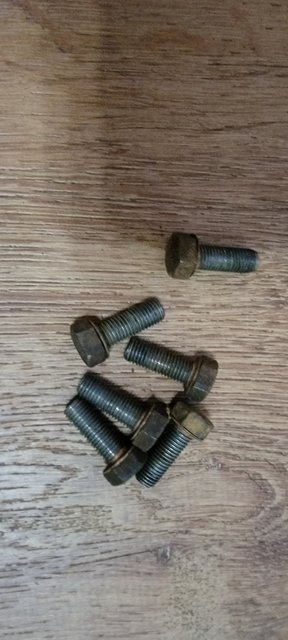

I went out ot garage and found this baggie of bolts left over from the engine builder.

had the 6 bolts and copper washers in it.

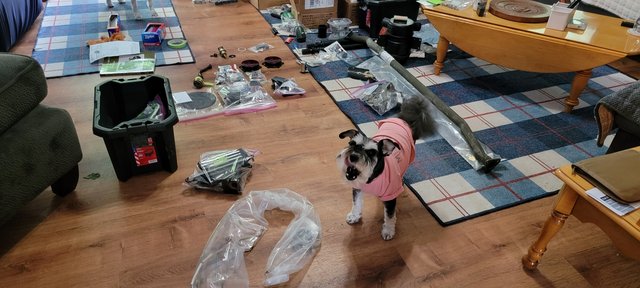

this prompted me to do an inventory (picture) of all the things I have and what I am not sure of what it was cause the seller doesnt include a packing list or inventory part number on the item...... I would succeed in this profession but also go nuts if i was left to do it all...

Like- which is which?

What does this go to?

This is how my living room looked for three hours- I ordered a pizza via an app at 6pm and its 745 pm and not delivered still... now it says 915. what in tarnation!!!! (insert my real F bomb)- HILDA was not happy with me... It was interrupting her stories on YT.

I have a few items of the same thing for what ever reason- ordered from different vendors by accident?

Not much else is needed... just time and good weather.

Had I worked out side today I would have gotten less wet from the rain than I do from the produce isle of the grocery store! It didn't rain like the weather man said. If I went to my CO and said "hey Captain, this flux capacitor is broken; it will take a day to fix..." only to find out it was the widget from the Guiness bottle acting up---- I'd be fired in short order.

RonD2 · Post by **RonD2** » Thu May 12, 2022 6:00 pm

Hi April,
Glad you found the 6 bolts!
I'll have to go back and look at the YT video to see the bracket.
You already have the 2 smaller (left and right) mates for it?

On the rubber boots, I'm pretty sure the top one goes behind your gas pedal over the linkage rod through the floor pan.
Pretty sure the other is for the clutch cable where it passes into the bell housing. It fits over the nipple sticking out of the housing (there's a special clamp for it).

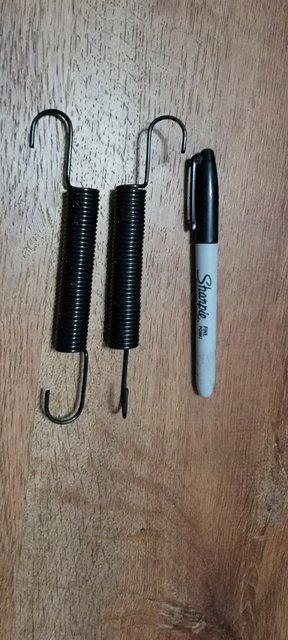

The 2 springs look to me like clutch and brake pedal return springs. Anchor points are shown in the manuals.

You didn't ask yet but while we're in the neighborhood, don't neglect your engine stay cable or your engine fan might eat your new expensive radiator for lunch.

Pizza and a Guiness sounds good!
