Fuel brass T where primer pump is concected

[Ryan_Miller]

I am correct in reading that at the connection of the dash cold weather primper pump fuel line to the main fuel line at the "brass T" there is a ball check valve.

If so, where can I find one? I am going to check at the local parts store that carries more stuff than the national syndicated stores.

[OKCM38CDN]

Ryan,

Check with remi edmond over on the For Sale Board, he had them...

Hope this helps...

[Ryan_Miller]

Hal,

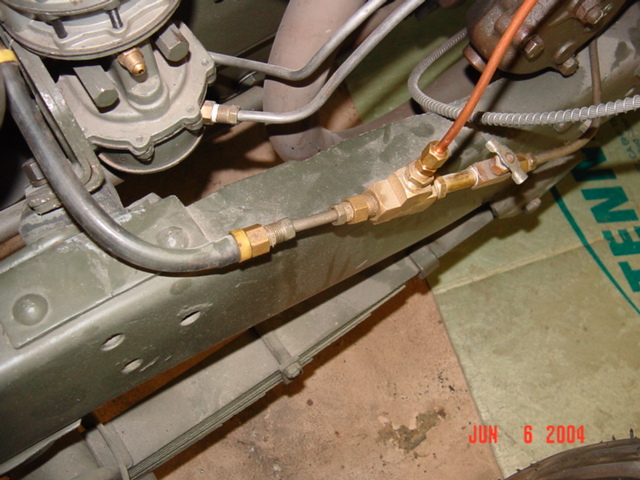

Here is a photo just to make sure we are on the same page.

Just off the brass T , the line going upward to the dash pimer pump.

At the T just before the primer pump line hooks on is where the ball valve should be, right?



And while I am asking. I have been trying to look up the size of the brass fitting at the fuel line to the carb.

[OKCM38CDN]

Ryan,

To my understanding this is the same ball check valve that is used on the underwater vent line from the fuel/vaccum pump to the Bell housing /Transfer case...

All fuel lines are 1/4" on the M-38... The M-38A1 were 5?16"... per the SNL...

Hope this helps...

[Ryan_Miller]

Thanks Hal,

That is what I was thinking also.

[wesk]

Yes the ball check connector 7375063 is the same for both fuel pump vent line and primer supply line "T". But the connector is actually 3/16" tubing size. I may be mistaken Ryan but it looks like your "T" is about 2" too far forward and is not quite the right connections between the shutoff and the "T".

[Ryan_Miller]

Wes,

That was a photo of Ben's and Luciano's set up.

What kind of tapered connector is that?

[wesk]

If you are referring to the tubing nut that is fastened to the top of the check valve it is a standard LONG style 45 degree 3/16" flared tubing nut ORD 120704. You could use the short nut found on the fuel pump. The longer nut is more vibration damage resistant.
