Cacti_Ken · Post by **Cacti_Ken** » Tue Nov 28, 2006 8:39 pm

Which side of the firewall does the auxilary plug cap face? Engine side or passenger side?

kenperkins · Post by **kenperkins** » Tue Nov 28, 2006 9:43 pm

my caps on the passenger side, not much written about that receptical

maeserik · Post by **maeserik** » Wed Nov 29, 2006 2:25 am

i did not install it yet, but i thinck the wire is at the engine side, the connecting plug at the inside, firewall passengerside

nr.25

maeserik · Post by **maeserik** » Wed Nov 29, 2006 2:42 am

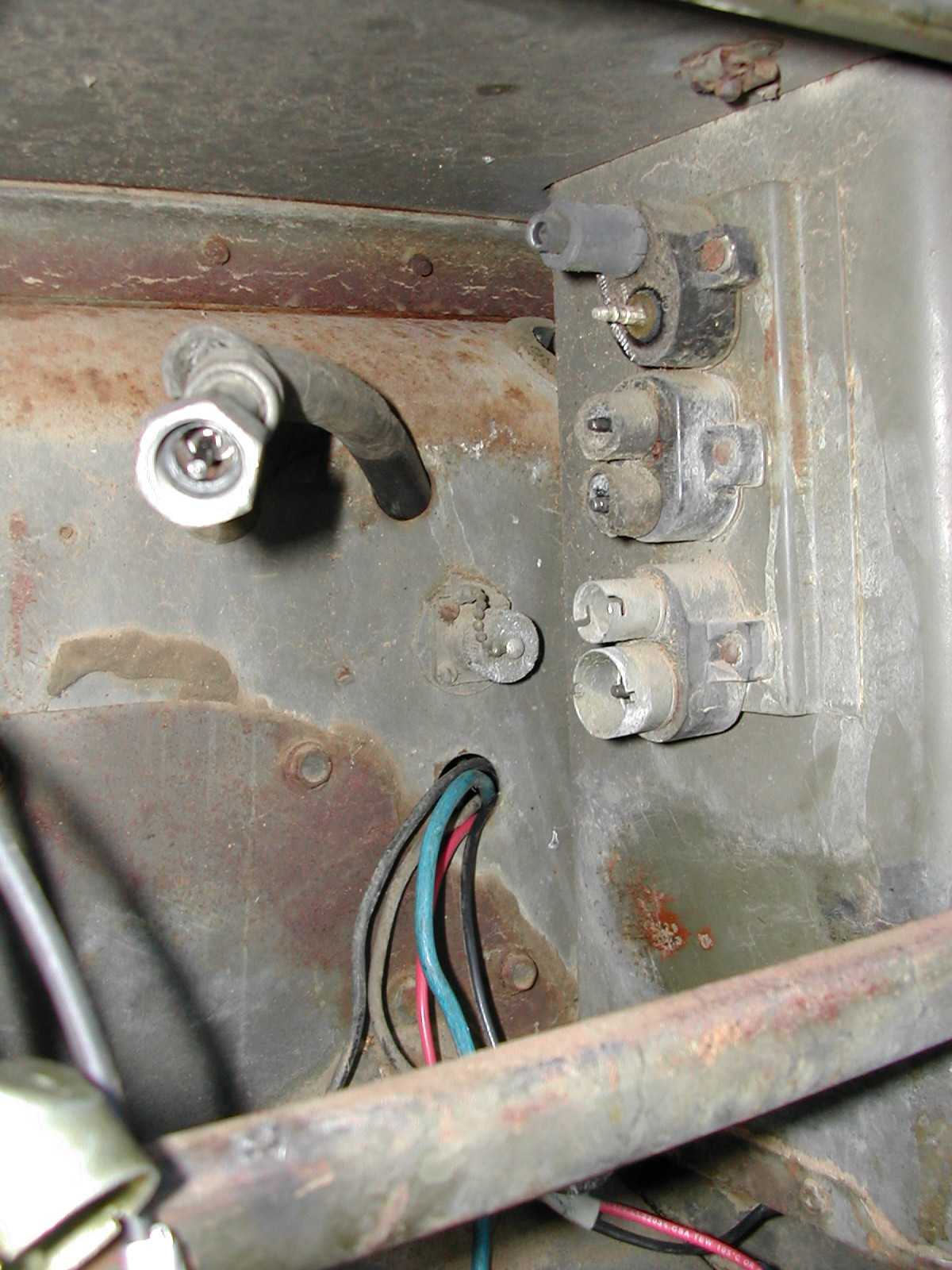

found a picture on the web,

http://www.garbee.net/~cabell/m38pages/ ... /m3832.JPG

i used these pictures in the past for details as this jeep seems to be nearly complete

thanks to Cabel Garbee

Cacti_Ken · Post by **Cacti_Ken** » Wed Nov 29, 2006 12:23 pm

Thanks for the photo. I don't believe my wiring harness came with the sockets to tie into that aux. plug. So guess I will have to find number 10 wire in the harness and cut into it. That's not good cause I'll have to unrap the tap.
First I'll double check to see if it accomodates for it.

maeserik · Post by **maeserik** » Wed Nov 29, 2006 1:35 pm

what i thinck :

the aux.socket seemes only to be on the early M38, wiringsets for later M38 do not have the cable between the socket and the fuses besides the battery box, on different diagrams there is no aux. socket ( also not on an M38a1)

maeserik · Post by **maeserik** » Wed Nov 29, 2006 1:37 pm

what i thinck :

the aux.socket seemes only to be on the early M38, wiringsets for later M38 do not have the cable between the socket and the fuses besides the battery box, on different diagrams there is no aux. socket ( also not on an M38a1)

DFoley · Post by **DFoley** » Wed Nov 29, 2006 2:06 pm

What is the purpose of this plug? It seems to be located in a very difficult location to access easily in the field.

kenperkins · Post by **kenperkins** » Wed Nov 29, 2006 2:46 pm

did'nt they delete that receptical around 20,000? mine is 22936 and has the receptical with cover but, was not connrcted to the breaker

Cacti_Ken · Post by **Cacti_Ken** » Wed Nov 29, 2006 5:11 pm

I guess since the firewall has a place for it, that doesn't mean it is suppose to be one mounted there does it?
Also I would think that it is suppose to face the engine compartment so it could be accessed easier and the wire could be attached to a hot wire behind the instrument panel.

Maybe it was there so one could use a trouble light under the hood.

Kendall · Post by **Kendall** » Wed Nov 29, 2006 7:38 pm

On my M38 the plug faces in on the passenger side. Your right, it does not seem to be very easy to access.
Kendall

Cacti_Ken · Post by **Cacti_Ken** » Wed Nov 29, 2006 9:12 pm

Doesn't make sense. The lower circuit breaker gets in the way of it.

Post by **wesk** » Thu Nov 30, 2006 12:45 am

The aux power receptacle was used thru MC47771. I would guess it was for use of portable electrical equipment.
