Original Spacer SC-C-28600

Luis · Post by **Luis** » Sun May 08, 2011 6:26 pm

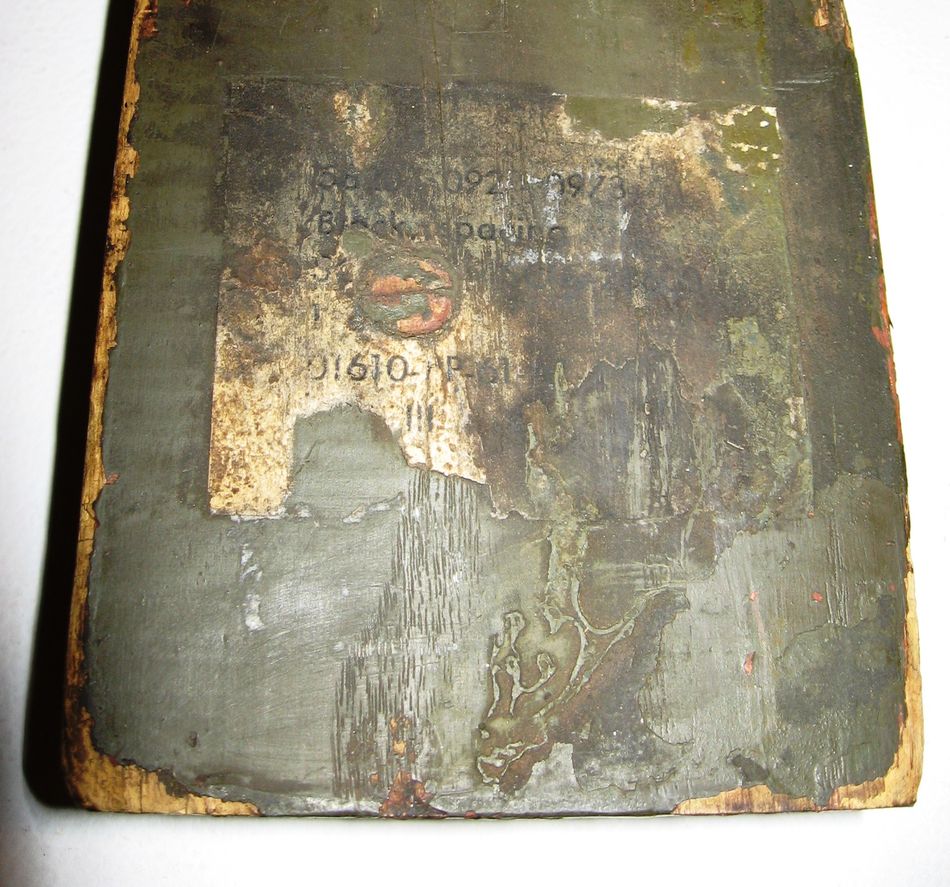

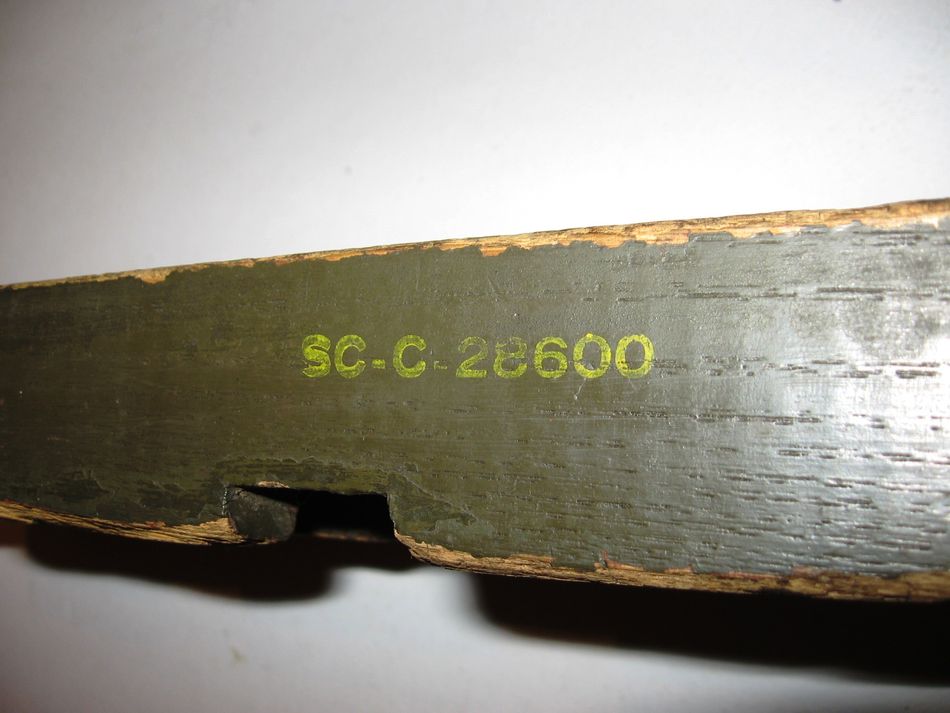

SPACER SC-C-28600

Bretto · Post by **Bretto** » Sun May 08, 2011 9:43 pm

OK, so what is it.

Post by **wesk** » Sun May 08, 2011 10:33 pm

It is a wooden spacer used to provide a level surface for a radio mount when the original steel mounting area was not flat and smooth. I have Signal Corp drawings for SC-C-28599 and SC-c-28602 but I do not have the drawings for SC-C-28600 and SC-C-28601.

AeroE · Post by **AeroE** » Mon May 16, 2011 6:38 am

I need to make this type of spacer for my M38. Exactly which spacer is correct for a VRC-10 installation in an M38, and is a drawing available? I’ve gone over the drawings in the Downloads section but, unless I’m missing something, cannot find this information.

My M38 came with 4 holes on the passenger side of the wheel well top, but I want to install on the driver's side.

Post by **wesk** » Mon May 16, 2011 8:56 am

They are correct for the VRC-8, 9, 10 in the M38/M38A1 on the left wheel house. There are two drawings for two different VRC-8, 9, 10 installations in the M38/M38A1.

SC-D-28605 on the left wheel house and SC-D-75682 in place of the rear seat.
http://willysmjeeps.com/v2/modules/gall ... 0_Left.jpg
http://willysmjeeps.com/v2/modules/gall ... .sized.jpg

You already have the correct wood spacers for the SC-D-28605 installation on the left wheel house. Just reverse their mounting to the right wheel house.
